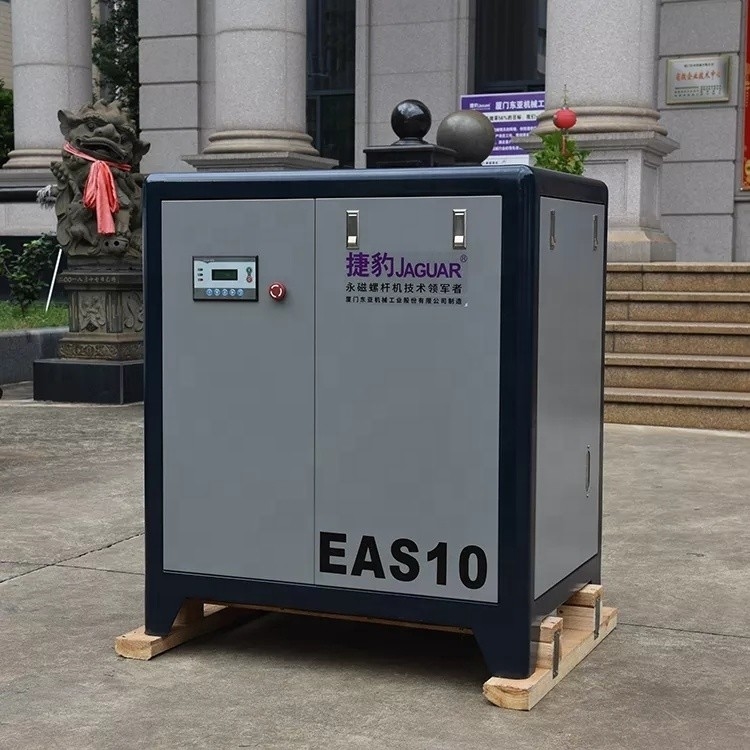

Name: Advertising Configuration Stationary Rotary Screw Air Compressor for Sandblasting
Brand: JAGUAR
SKU: EAS-10
Price: 1 USD
Availability: InStock
Rating: 4.9 (126 reviews)

Product Details

Place of Origin: Fujian, China

Brand Name: JAGUAR

Certification: ISO9001/ASME/ISO45001/ISO14001/GCCA/SAQM/CMIIT

Model Number: EAS-10

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $1,685.00/pieces 1-4 pieces

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	None
Condition:	New, New	Type:	Screw
Configuration:	Stationary	Power Source:	AC POWER
Lubrication Style:	Lubricated	Mute:	Yes
Voltage:	415V/380V/220V/60HZ/50HZ	Dimension(LWH):	9506901190
Weight:	300KG	Warranty:	1 Year
Working Pressure:	8 Bar	Air Capacity:	1.2 M3/min
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Pressure Vessel, Engine, Motor, Pump, Bearing	Gas Type:	Air
Displacement:	1.2 M3/min	After Warranty Service:	Online Support
After-sales Service Provided:	Online Support

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	None
Condition:	New, New
Type:	Screw
Configuration:	Stationary
Power Source:	AC POWER
Lubrication Style:	Lubricated
Mute:	Yes
Voltage:	415V/380V/220V/60HZ/50HZ
Dimension(LWH):	9506901190
Weight:	300KG
Warranty:	1 Year
Working Pressure:	8 Bar
Air Capacity:	1.2 M3/min
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	PLC, Pressure Vessel, Engine, Motor, Pump, Bearing
Gas Type:	Air
Displacement:	1.2 M3/min
After Warranty Service:	Online Support
After-sales Service Provided:	Online Support

Advertising Configuration Stationary Rotary Screw Air Compressor for Sandblasting

Products Description

Jaguar two-stage permanent magnet variable frequency screw air compressor adopts dual screw air-end, dual permanent magnet motor, dual frequency converter, dual cooler. The intermediate pressure is adjustable, which makes it closer to isothermal compression and more energy-saving.

Product name: Jaguar two-stage permanent magnet variable frequency screw air compressor

Application fields: Machinery, Textile, Chemical and energy Product features: 1. Jaguar two-stage compression is closer to isothermal compression and more energy-saving

2. Equips dual air-end and dual motor

3. Adopts IE4 super-efficient permanent magnet motor, which improves the energy efficiency by 10%

4. The dual frequency converter equipped makes the control of air compressor stable.

5. Adopts coaxial transmission, high transmission efficiency

6. The compressor adopts water-cooling system, the cooling effect is good.

The advantages of dual air-end and dual motor

1. Each stage air-end can be directly driven by two independent motors and the compression ratio of each stage will reduce so that the air output increase. 2. The air-end is easy to maintain, which enable the high-efficiency operation in long term. The manufacturing of air-end is simple and the failure rate of it is low. 3. The intermediate pressure can be adjusted flexibly. 4. Replace the air-end to realized different pressure and higher energy efficiency.

The two-stage compression operating principle of screw air compressor

As known from the operating principle of air compressor, the isothermal compression is the most energy-saving. The blue area in the below figure represents the power saving of two-stage compression over the one-stage compression. The two-stage compression effectively saves the power of compressor, which make the air compressor closer to isothermal compression. The isothermal compression is the most energy-saving.

Adopts special cooling spray design

The air-end of one-stage and two-stage adopts special cooling spray design at the end of shaft block on the one-stage, which enable the better cooling between one-stage and two-stage so that the two-stage compression of air compressor will be closer to isothermal compression.

The whole series adopt IE4 high-efficiency motor:

Jaguar 2iC series takes with IE4 permanent magnet variable frequency high-efficiency motor. IE4 permanent magnet variable frequency motor uses rare-earth NdFeB, which enable it to have features such as high-efficiency, wider adjustable range, compact structure, small volume and light weight.

With the permanent magnet variable frequency technology, it can save the energy as high as 50%:

The permanent magnet variable frequency technology of Jaguar closely fits the actual air demands and will automatically regulate the air compressor. The compressed air generated by the screw air compressor will be controlled through the speed adjustment of motor, so that the energy will be significantly saved by automatically fitting the actual air demands for users. That is through this principle that will immensely save the energy cost for air compressor as high as 50%.

Dual variable frequency smart control:

Adopts dual Inovance frequency converters. Two of them will mutually regulate so as to control the screw air compressor in an orderly and stable way and provide you with compressed air with constant pressure.

High-efficiency and stable water-cooling system:

Adopts the creative water-cooling system in the industry. The good cooling effect ensures that the heat of permanent magnetic motor can be controlled stably and the water cooling of the whole machine is smaller than power so that it is more energy-saving.

Specification

Company Profile

Xiamen East Asia Machinery Industrial Co., Ltd(EAMI) is a large-scale professional manufacturer invested by Taiwan. With its constant efforts and renovation, over 30 years experience of air compressors research, development, production, sales, and service, EAMI provides outstanding compressed air solutions for global customers by its JAGUAR brand air compressors, air dryer, air tank, etc.

Product Application

Exhibition

Recommend Products

FAQ

Title goes here.

1. Are you a factory or foreign trade company? We are a professional air compressor factory with more than 30 years of experience.

2. What're the main features of your air compressor? Energy-efficient and high-performance.

3. How to choose a suitable air compressor? It's better to choose a compressor according to air displacement.

4. How about your payment terms? We accept TT and L/C.

5. How many days do you need to produce a compressor? Generally, we need 10-20 working days.
